DeckMount Pulse Oxygen Concentrator
- Dual Flow Settings: Pulse & Continuous
- Ultra-Lightweight & Travel-Friendly
- Detachable Lithium-Ion Battery for Extended Use
- Multiple Safety Alarms
Product Description
With every inhale of your breath pulse flow technology delivers a breath of oxygen when you need it most. Our pulse flow senses the pressure of each breath, through the nasal cannula, to deliver the exact dose you require at the exact moment you need it. To briefly explain pulse flow delivery is an oxygen-conserving system that only produces oxygen on demand.
Pulse Oxygen Concentrator: Key Features
- Dual Flow Settings: Pulse & Continuous
The pulse oxygen concentrator has dual-mode operation, offering Pulse Mode (1-5 settings) for on demand oxygen and Continuous Mode (6th setting) for steady oxygen flow, ensuring effective respiratory support.
- Ultra-Lightweight & Travel-Friendly
Designed for convenience, this pulse oxygen concentrator weighs just 1.45kg (device) + 0.45kg (battery), making it easy to carry for travel, outdoor use, or daily mobility.

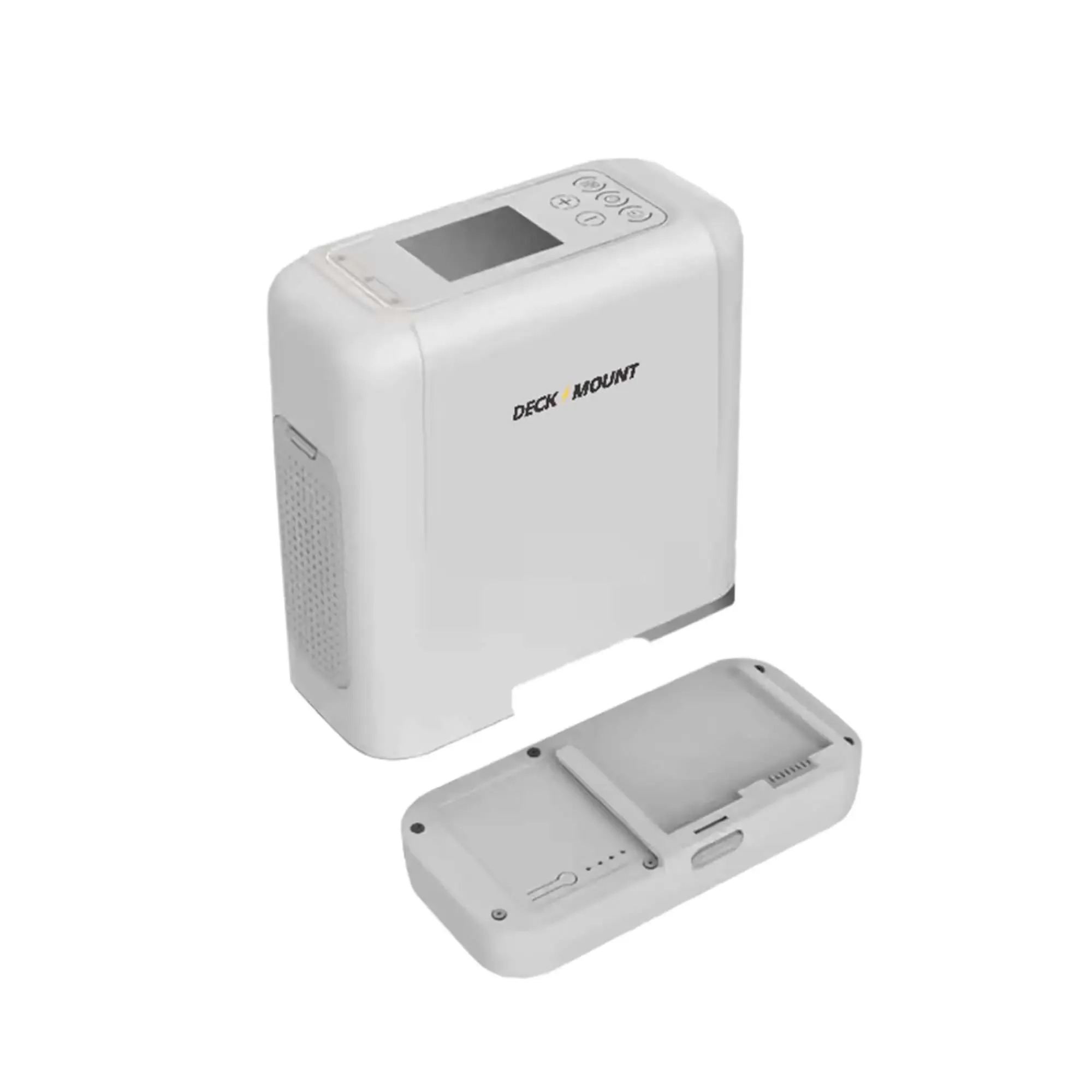

- Detachable Lithium-Ion Battery for Extended Use
With a battery life of up to 4 hours in a single charge and a quick 2.5-hour recharge time, this pulse oxygen concentrator ensures uninterrupted oxygen therapy wherever you go.
- Medical-Grade Oxygen Purity
Delivers ≥90% oxygen purity across all settings, providing high-quality oxygen support whenever needed.
- Multiple Safety Alarms
Equipped with smart alarms for low battery, no breath detection, and system errors, offering secure operation.
- Humidification for Enhanced Comfort
The built-in humidification feature provides moist oxygen, helping to prevent nasal irritation, throat dryness, and discomfort.
- Warranty
The Pulse Oxygen Concentrator comes with a 1-year warranty on the device and 3 months on the battery ensuring long term service support.
Dimension L*W*H 15.0cm*7.5cm*16.0cm
Gross Weight Machine Weight 1.1Kg Battery Weight 0.3Kg
Warranty 1 Year on Device, 3 Months on Battery
AC Power Source AC100-240V 50/60 Hz 60VA MAX
Audio alarm ≥45dB(A)
Battery charging time 2.5h
Battery duration 4~1.5h
Conforms to Standards IEC 60601-1-1 , IEC 60601-1-2 , IEC 80601-2-12 ::: Class 2 (double insulated, Type BF, Ingress Protection IP22)
Gear setting 1 2 3 4 5
Interface 2.8″ Monitor
Internal battery 14.8VDC 4A Max
Max outlet pressure 100KPa±20%
Max recommended flow 0.8L Min (Pulse Oxygen Supply)
Operating noise ≤60dB (A) (Gear 5)
oxygen concentration ≥90 % (At all gears and Respiratory Rates)
Respiratory rate 10-40 BPM
Respiratory sensitivity ≤0.12 cmH2O
Sea level 5000 – 6000M Normal Use
Suitable environment Temperature 5~40 , Humidity 10 90 Non Condensing State , Atmospheric Pressure : 540hPa~1060hPa
Warm-up time 3min
